HK3 Continuous NIR Evaluation Unit

  • It all begins with an idea. Maybe you want to launch a business. Maybe you want to turn a hobby into something more. Or maybe you have a creative project to share with the world. Whatever it is, the way you tell your story online can make all the difference.

  • The HK3 is a continuous NIR reflection measurement with infrared LED’s. The LED-NIR- Spectrometer HK3 is a modular unit, evaluation and sensor system are mounted in separate housings.

    The distance between sensor system and evaluation unit could be up to 50 meters.

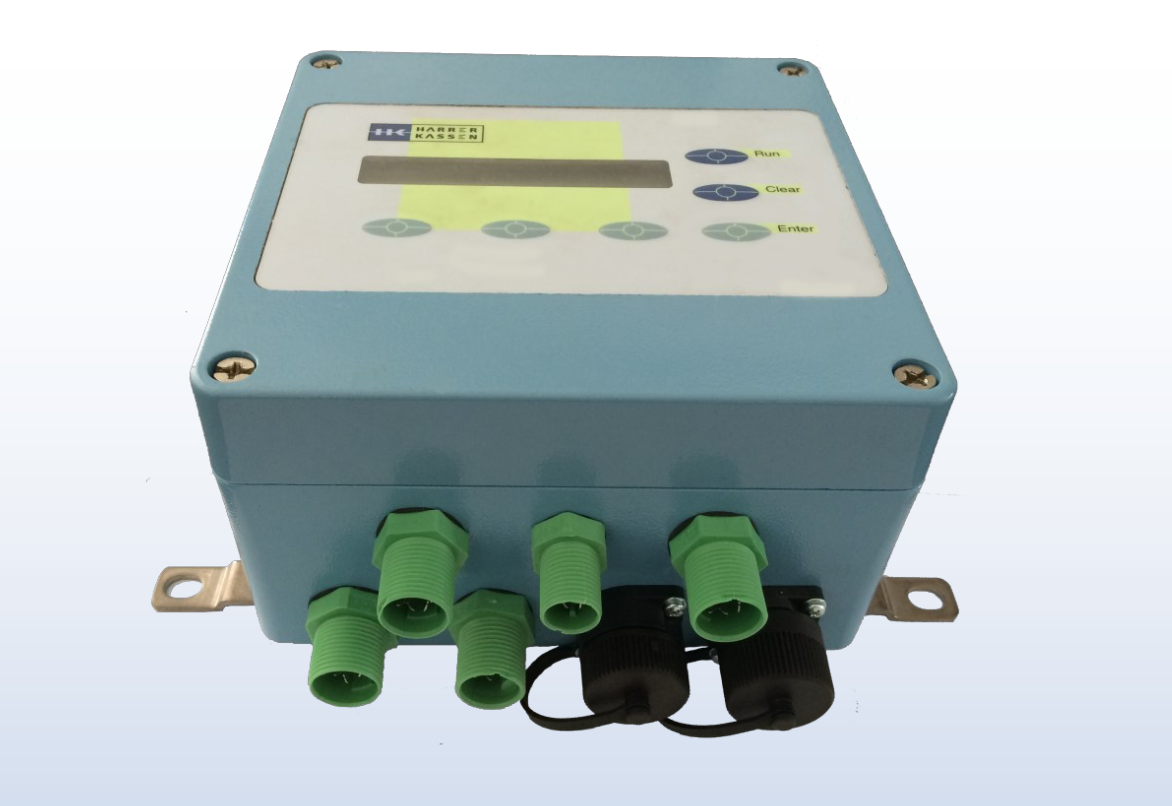

  • Evaluation Unit

    • System: Microprocessor with NV-memory

    • Housing: Pressure cast aluminum housing, IP65. L x W x H = 180 x 180 x 100mm

    • Weight: about 2.5kg

    • Voltage: 85 - 260 VAC; 47 - 65Hz

    • Power consumption: 50 VA

    • Current output 1: 0/4 - 20mA isolated, max. load 500Ω

    • RS232 interface: 19200, 38400 Baud, 8 data bit, 1 stop bit, no parity

    • Display: 2x24 characters LCD, LED-backlight

    • Operating temperature: -20 - 50 °C

    • Storage temperature: -30 - 95 °C

    • Radiation: EN55011 Part B

    • Noise immunity: EN50082/1

    • Safety: IEC1010-1

    • Spectrometer: 940, 1200, 1440, 1550nm

    Reflection Sensor

    • Housing: Aluminum, IP65. L x W x H = 180 x 180 x 100mm

    • Weight: about 2.5kg

    • Illumination: LEDs

    • Operating Temperature: -20 - 50 °C

    • Storage temperature: -30 - 95 °C

    • Pin antennas for any size flange to measure in pipes and tanks

    • Mini spiral antennas for the measurements in pipes

    • short pin antennas for the measurement in pipes

    • Remote control by separate operating device

    • Cleaning flange DN65 PN16 for sensor cleaning

    • PROFIBUS (other bus systems on request)
