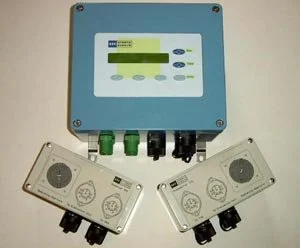

HK-5 Moisture Measurement Device

  • It all begins with an idea. Maybe you want to launch a business. Maybe you want to turn a hobby into something more. Or maybe you have a creative project to share with the world. Whatever it is, the way you tell your story online can make all the difference.

    • Sugar

    • Sewage Plant

    • Building Material Industry

    • System: Microprocessor with NV-memory

    • Housing: Pressure cast aluminum housing, IP65. L x W x H = 230 x 200 x 110mm

    • Weight: about 5kg

    • Voltage: 230 - 115 VAC ±15%; 47 - 65Hz

    • Power consumption: 50 VA

    • Current output 1: 0/4 - 20mA active output, isolated, max. load 500Ω

    • Current output 2: 0/4 - 20mA active output, isolated, temperature or second output for process value, max. load 500Ω

    • Current input: 0/4 - 20mA, not isolated, load 125Ω

    • COM1 bi-directional: RS232, 4800, 9600 Baud, 8 data bit, 1 stop bit, no parity

    • Relay: AC 250VA, DC 30V 1A

    • Display: 2x24 characters LCD, LED-backlight

    • Operating temperature: -20 - 85 °C

    • Storage temperature: -30 - 95 °C

    • Radiation: EN55011 Part B

    • Noise immunity: EN50082/1

    • Safety: IEC1010-1

    • Product selection switch

    • Remote control by separate operating device

    • PROFIBUS (other bus systems on request)

    • Stainless steel enclosure
